View from above orbital plane
|
View from above satellite
|

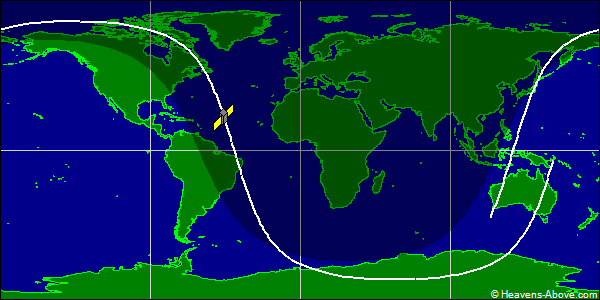

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 31569U 99025BZL 24355.56594308 .00004186 00000-0 29235-2 0 9990
2 31569 102.6225 18.0502 0181316 135.6640 13.9376 13.91813327887993
| Epoch (UTC): | 20 December 2024 13:34:57 |
| Eccentricity: | 0.0181316 |
| inclination: | 102.6225° |
| perigee height: | 790 km |
| apogee height: | 1054 km |
| right ascension of ascending node: | 18.0502° |
| argument of perigee: | 135.6640° |
| revolutions per day: | 13.91813327 |
| mean anomaly at epoch: | 13.9376° |
| orbit number at epoch: | 88799 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
