View from above orbital plane
|
View from above satellite
|

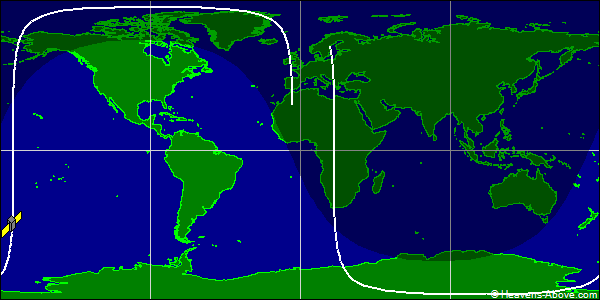

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 33775U 97051N 24358.04189163 .00002774 00000-0 87905-3 0 9993
2 33775 86.3671 200.6944 0012495 254.5844 257.6878 14.39749586830433
| Epoch (UTC): | 23 December 2024 01:00:19 |
| Eccentricity: | 0.0012495 |
| inclination: | 86.3671° |
| perigee height: | 750 km |
| apogee height: | 768 km |
| right ascension of ascending node: | 200.6944° |
| argument of perigee: | 254.5844° |
| revolutions per day: | 14.39749586 |
| mean anomaly at epoch: | 257.6878° |
| orbit number at epoch: | 83043 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
