View from above orbital plane
|
View from above satellite
|

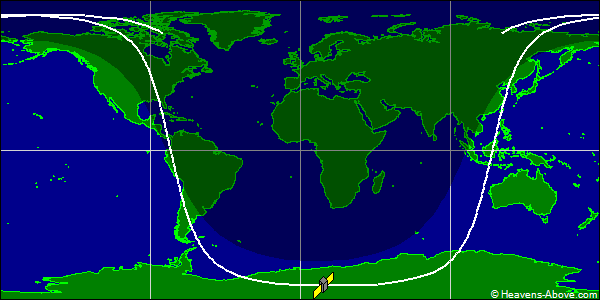

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 54411U 22151EK 24358.00881852 .00002653 00000-0 87197-3 0 9991
2 54411 98.7463 10.8057 0211230 92.3773 270.1607 14.27211087109629
| Epoch (UTC): | 23 December 2024 00:12:41 |
| Eccentricity: | 0.0211230 |
| inclination: | 98.7463° |
| perigee height: | 649 km |
| apogee height: | 953 km |
| right ascension of ascending node: | 10.8057° |
| argument of perigee: | 92.3773° |
| revolutions per day: | 14.27211087 |
| mean anomaly at epoch: | 270.1607° |
| orbit number at epoch: | 10962 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
