View from above orbital plane
|
View from above satellite
|

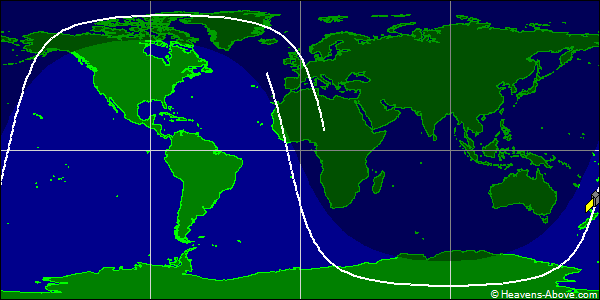

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 12203U 78026AU 24358.10059861 .00002521 00000-0 82312-3 0 9992
2 12203 98.6642 7.9221 0062087 3.0884 38.5860 14.38395394286580
| Epoch (UTC): | 23 December 2024 02:24:51 |
| Eccentricity: | 0.0062087 |
| inclination: | 98.6642° |
| perigee height: | 719 km |
| apogee height: | 808 km |
| right ascension of ascending node: | 7.9221° |
| argument of perigee: | 3.0884° |
| revolutions per day: | 14.38395394 |
| mean anomaly at epoch: | 38.5860° |
| orbit number at epoch: | 28658 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
