View from above orbital plane
|
View from above satellite
|

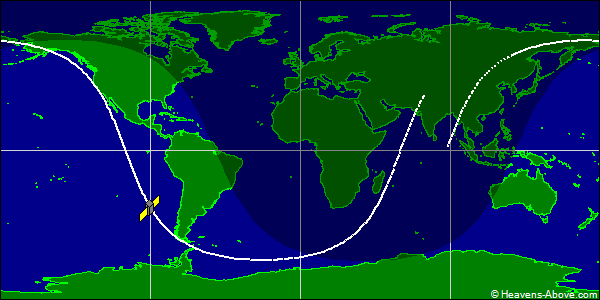

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 19475U 76126CD 24358.39272258 .00004133 00000-0 20978-2 0 9997
2 19475 65.8547 127.1183 0800594 106.9444 262.0862 13.14863295638397
| Epoch (UTC): | 23 December 2024 09:25:31 |
| Eccentricity: | 0.0800594 |
| inclination: | 65.8547° |
| perigee height: | 597 km |
| apogee height: | 1811 km |
| right ascension of ascending node: | 127.1183° |
| argument of perigee: | 106.9444° |
| revolutions per day: | 13.14863295 |
| mean anomaly at epoch: | 262.0862° |
| orbit number at epoch: | 63839 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
