View from above orbital plane
|
View from above satellite
|

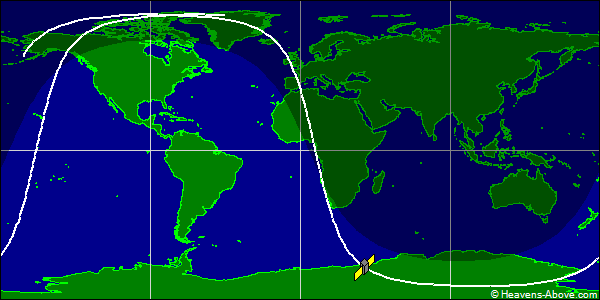

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 54519U 22151JX 24357.98638196 .00005257 00000-0 14499-2 0 9994
2 54519 98.5585 10.7591 0127619 169.6269 190.7599 14.42517269110760
| Epoch (UTC): | 22 December 2024 23:40:23 |
| Eccentricity: | 0.0127619 |
| inclination: | 98.5585° |
| perigee height: | 659 km |
| apogee height: | 841 km |
| right ascension of ascending node: | 10.7591° |
| argument of perigee: | 169.6269° |
| revolutions per day: | 14.42517269 |
| mean anomaly at epoch: | 190.7599° |
| orbit number at epoch: | 11076 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
