View from above orbital plane
|
View from above satellite
|

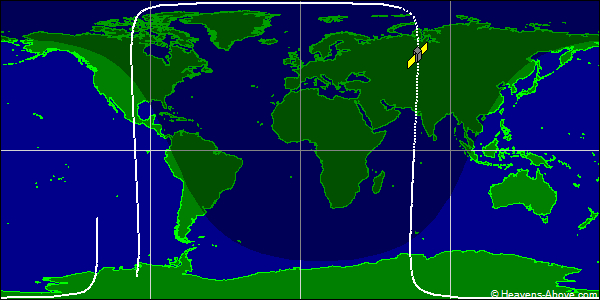

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 60874U 24140KD 24357.90597364 .00003329 00000-0 79304-3 0 9993
2 60874 88.8899 332.7926 0102909 319.9347 39.4300 14.50385717 18847
| Epoch (UTC): | 22 December 2024 21:44:36 |
| Eccentricity: | 0.0102909 |
| inclination: | 88.8899° |
| perigee height: | 651 km |
| apogee height: | 797 km |
| right ascension of ascending node: | 332.7926° |
| argument of perigee: | 319.9347° |
| revolutions per day: | 14.50385717 |
| mean anomaly at epoch: | 39.4300° |
| orbit number at epoch: | 1884 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
