View from above orbital plane
|
View from above satellite
|

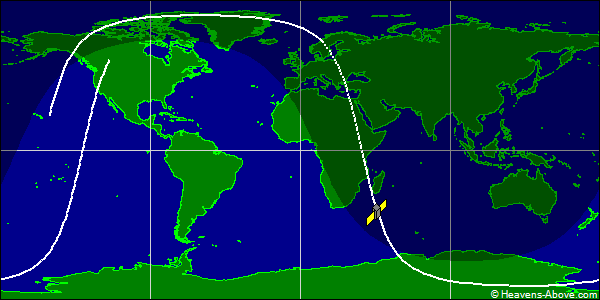

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 54638U 22151PQ 24357.63334743 .00021059 00000-0 41196-2 0 9991
2 54638 98.6724 31.2994 0093504 145.5189 215.2124 14.60074382110910
| Epoch (UTC): | 22 December 2024 15:12:01 |
| Eccentricity: | 0.0093504 |
| inclination: | 98.6724° |
| perigee height: | 627 km |
| apogee height: | 759 km |
| right ascension of ascending node: | 31.2994° |
| argument of perigee: | 145.5189° |
| revolutions per day: | 14.60074382 |
| mean anomaly at epoch: | 215.2124° |
| orbit number at epoch: | 11091 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
