View from above orbital plane
|
View from above satellite
|

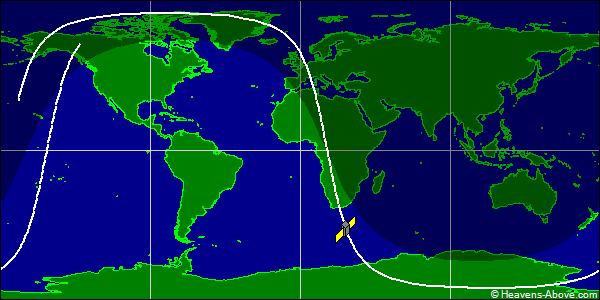

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 58503U 23189B 24358.19349888 .00029019 00000-0 83618-3 0 9996
2 58503 97.4538 5.6841 0012166 26.9628 333.2245 15.35621444 58620
| Epoch (UTC): | 23 December 2024 04:38:38 |
| Eccentricity: | 0.0012166 |
| inclination: | 97.4538° |
| perigee height: | 451 km |
| apogee height: | 467 km |
| right ascension of ascending node: | 5.6841° |
| argument of perigee: | 26.9628° |
| revolutions per day: | 15.35621444 |
| mean anomaly at epoch: | 333.2245° |
| orbit number at epoch: | 5862 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
