View from above orbital plane
|
View from above satellite
|

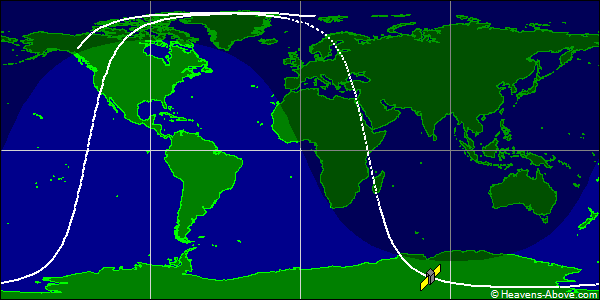

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 53815U 22113A 24358.10161175 .00019843 00000-0 99730-3 0 9991
2 53815 97.5320 46.4548 0006090 2.3948 357.7314 15.17278798124802
| Epoch (UTC): | 23 December 2024 02:26:19 |
| Eccentricity: | 0.0006090 |
| inclination: | 97.5320° |
| perigee height: | 510 km |
| apogee height: | 518 km |
| right ascension of ascending node: | 46.4548° |
| argument of perigee: | 2.3948° |
| revolutions per day: | 15.17278798 |
| mean anomaly at epoch: | 357.7314° |
| orbit number at epoch: | 12480 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
