View from above orbital plane
|
View from above satellite
|

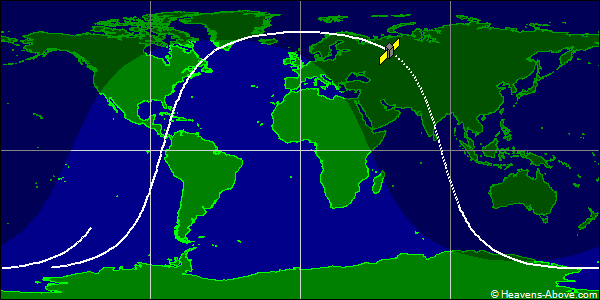

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 27760U 94077M 24357.65921148 .00007261 00000-0 14262-2 0 9999
2 27760 70.9950 231.5408 0045060 68.7566 324.2422 14.62322635310692
| Epoch (UTC): | 22 December 2024 15:49:15 |
| Eccentricity: | 0.0045060 |
| inclination: | 70.9950° |
| perigee height: | 654 km |
| apogee height: | 717 km |
| right ascension of ascending node: | 231.5408° |
| argument of perigee: | 68.7566° |
| revolutions per day: | 14.62322635 |
| mean anomaly at epoch: | 324.2422° |
| orbit number at epoch: | 31069 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
