View from above orbital plane
|
View from above satellite
|

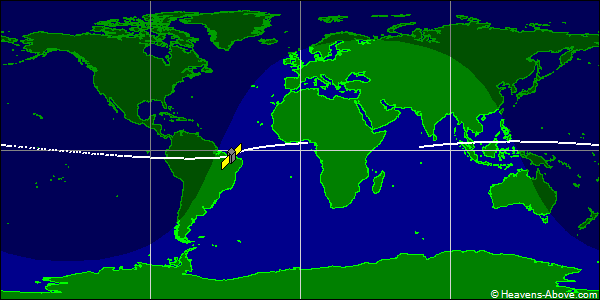

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 20718U 90063D 24357.43082215 .00002955 00000-0 35010-2 0 9994
2 20718 5.1268 232.6050 6082205 152.1846 261.3936 3.81116490401154
| Epoch (UTC): | 22 December 2024 10:20:23 |
| Eccentricity: | 0.6082205 |
| inclination: | 5.1268° |
| perigee height: | 404 km |
| apogee height: | 21464 km |
| right ascension of ascending node: | 232.6050° |
| argument of perigee: | 152.1846° |
| revolutions per day: | 3.81116490 |
| mean anomaly at epoch: | 261.3936° |
| orbit number at epoch: | 40115 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
