View from above orbital plane
|
View from above satellite
|

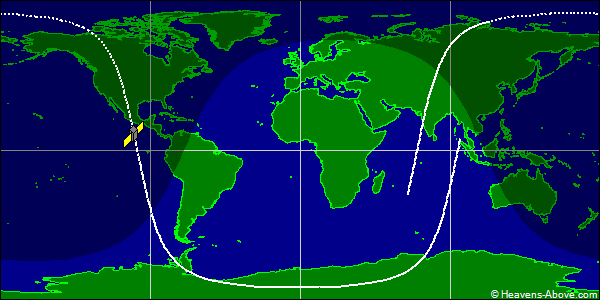

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 40043U 14033AK 24356.95525569 .00004229 00000-0 53510-3 0 9992
2 40043 97.7120 152.1122 0053963 51.9099 308.6964 14.81294546565233
| Epoch (UTC): | 21 December 2024 22:55:34 |
| Eccentricity: | 0.0053963 |
| inclination: | 97.7120° |
| perigee height: | 587 km |
| apogee height: | 663 km |
| right ascension of ascending node: | 152.1122° |
| argument of perigee: | 51.9099° |
| revolutions per day: | 14.81294546 |
| mean anomaly at epoch: | 308.6964° |
| orbit number at epoch: | 56523 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
