View from above orbital plane
|
View from above satellite
|

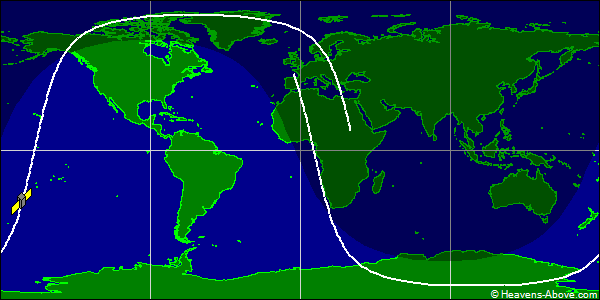

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 55552U 22151ZA 24358.02884290 .00017729 00000-0 41714-2 0 9993
2 55552 98.6573 23.2964 0091130 170.8922 189.3952 14.51865490104556
| Epoch (UTC): | 23 December 2024 00:41:32 |
| Eccentricity: | 0.0091130 |
| inclination: | 98.6573° |
| perigee height: | 655 km |
| apogee height: | 784 km |
| right ascension of ascending node: | 23.2964° |
| argument of perigee: | 170.8922° |
| revolutions per day: | 14.51865490 |
| mean anomaly at epoch: | 189.3952° |
| orbit number at epoch: | 10455 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
