View from above orbital plane
|
View from above satellite
|

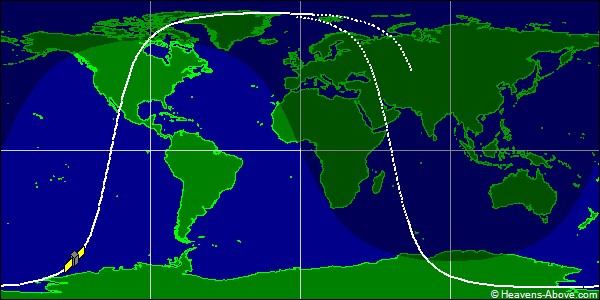

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 44777U 19075A 24358.17709670 .00017128 00000-0 74242-3 0 9991
2 44777 97.5558 63.5419 0009127 192.1829 167.9187 15.22409280282115
| Epoch (UTC): | 23 December 2024 04:15:01 |
| Eccentricity: | 0.0009127 |
| inclination: | 97.5558° |
| perigee height: | 492 km |
| apogee height: | 505 km |
| right ascension of ascending node: | 63.5419° |
| argument of perigee: | 192.1829° |
| revolutions per day: | 15.22409280 |
| mean anomaly at epoch: | 167.9187° |
| orbit number at epoch: | 28211 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
