View from above orbital plane
|
View from above satellite
|

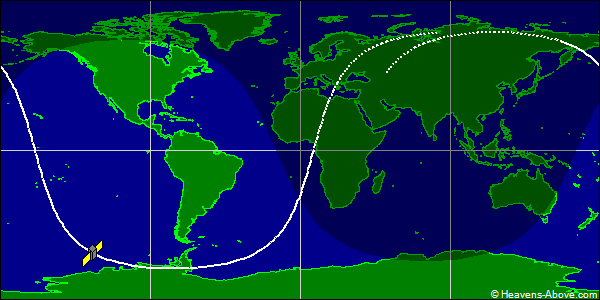

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 24297U 96051A 24358.24553425 -.00000149 00000-0 -53479-4 0 9995
2 24297 70.9044 34.0629 0021937 40.0749 320.1985 14.13682756460157
| Epoch (UTC): | 23 December 2024 05:53:34 |
| Eccentricity: | 0.0021937 |
| inclination: | 70.9044° |
| perigee height: | 831 km |
| apogee height: | 862 km |
| right ascension of ascending node: | 34.0629° |
| argument of perigee: | 40.0749° |
| revolutions per day: | 14.13682756 |
| mean anomaly at epoch: | 320.1985° |
| orbit number at epoch: | 46015 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
