View from above orbital plane
|
View from above satellite
|

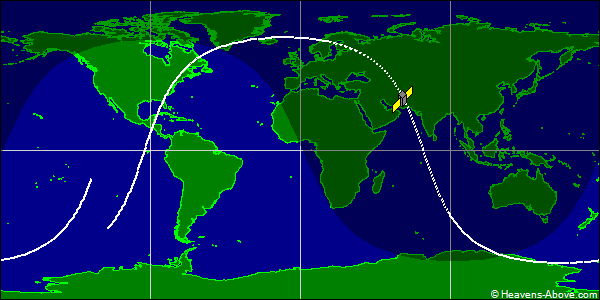

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 552U 61015GM 24358.14419480 .00003298 00000-0 22997-2 0 9991
2 552 67.7367 258.6471 0100810 119.1212 242.0015 13.97271478181441
| Epoch (UTC): | 23 December 2024 03:27:38 |
| Eccentricity: | 0.0100810 |
| inclination: | 67.7367° |
| perigee height: | 830 km |
| apogee height: | 976 km |
| right ascension of ascending node: | 258.6471° |
| argument of perigee: | 119.1212° |
| revolutions per day: | 13.97271478 |
| mean anomaly at epoch: | 242.0015° |
| orbit number at epoch: | 18144 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
