View from above orbital plane
|
View from above satellite
|

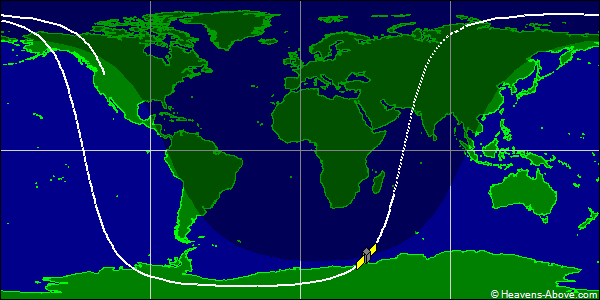

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 31133U 07012R 24357.83217113 .00002780 00000-0 51656-3 0 9991
2 31133 98.3723 319.3048 0073216 216.6890 142.9287 14.64295570941060
| Epoch (UTC): | 22 December 2024 19:58:19 |
| Eccentricity: | 0.0073216 |
| inclination: | 98.3723° |
| perigee height: | 627 km |
| apogee height: | 731 km |
| right ascension of ascending node: | 319.3048° |
| argument of perigee: | 216.6890° |
| revolutions per day: | 14.64295570 |
| mean anomaly at epoch: | 142.9287° |
| orbit number at epoch: | 94106 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
