View from above orbital plane
|
View from above satellite
|

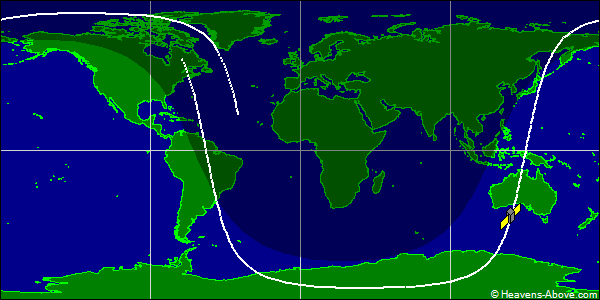

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 58647U 23205C 24358.16249513 .00010592 00000-0 50864-3 0 9998
2 58647 97.3905 18.6629 0010818 81.3064 278.9396 15.18977000 55144
| Epoch (UTC): | 23 December 2024 03:53:59 |
| Eccentricity: | 0.0010818 |
| inclination: | 97.3905° |
| perigee height: | 501 km |
| apogee height: | 516 km |
| right ascension of ascending node: | 18.6629° |
| argument of perigee: | 81.3064° |
| revolutions per day: | 15.18977000 |
| mean anomaly at epoch: | 278.9396° |
| orbit number at epoch: | 5514 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
