View from above orbital plane
|
View from above satellite
|

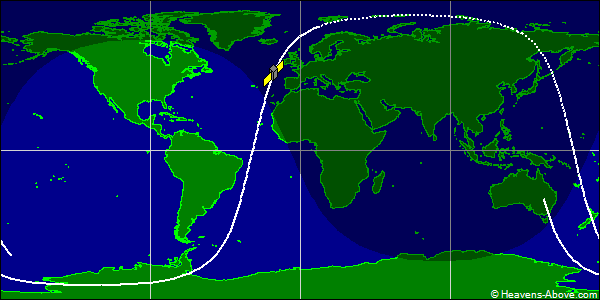

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 41512U 00055ML 24357.90973869 .00019430 00000-0 56808-2 0 9991
2 41512 98.9633 162.6726 0035321 237.1443 122.6344 14.43650505455864
| Epoch (UTC): | 22 December 2024 21:50:01 |
| Eccentricity: | 0.0035321 |
| inclination: | 98.9633° |
| perigee height: | 721 km |
| apogee height: | 771 km |
| right ascension of ascending node: | 162.6726° |
| argument of perigee: | 237.1443° |
| revolutions per day: | 14.43650505 |
| mean anomaly at epoch: | 122.6344° |
| orbit number at epoch: | 45586 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
