View from above orbital plane
|
View from above satellite
|

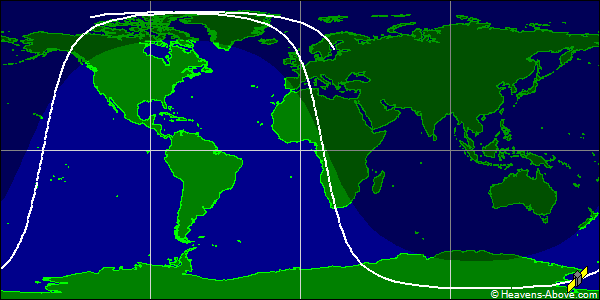

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 47504U 21006CV 24357.61161142 .00013437 00000-0 47811-3 0 9994
2 47504 97.1179 6.2433 0013437 272.4559 87.5143 15.28996844216863
| Epoch (UTC): | 22 December 2024 14:40:43 |
| Eccentricity: | 0.0013437 |
| inclination: | 97.1179° |
| perigee height: | 469 km |
| apogee height: | 488 km |
| right ascension of ascending node: | 6.2433° |
| argument of perigee: | 272.4559° |
| revolutions per day: | 15.28996844 |
| mean anomaly at epoch: | 87.5143° |
| orbit number at epoch: | 21686 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
