View from above orbital plane
|
View from above satellite
|

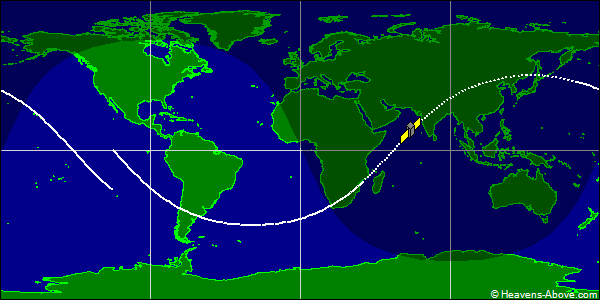

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 44311U 19032B 24358.21780700 .00019173 00000-0 90233-3 0 9996
2 44311 44.9760 58.8801 0008342 69.5776 290.5998 15.19295754305336
| Epoch (UTC): | 23 December 2024 05:13:38 |
| Eccentricity: | 0.0008342 |
| inclination: | 44.9760° |
| perigee height: | 502 km |
| apogee height: | 514 km |
| right ascension of ascending node: | 58.8801° |
| argument of perigee: | 69.5776° |
| revolutions per day: | 15.19295754 |
| mean anomaly at epoch: | 290.5998° |
| orbit number at epoch: | 30533 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
