View from above orbital plane
|
View from above satellite
|

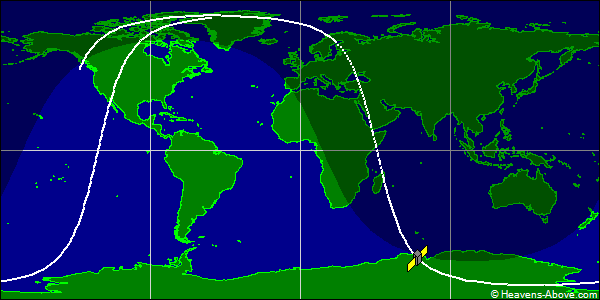

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 30662U 99025APU 24358.09641397 .00005873 00000-0 27955-2 0 9996
2 30662 99.0776 39.2169 0036448 204.2331 183.8363 14.19381894916227
| Epoch (UTC): | 23 December 2024 02:18:50 |
| Eccentricity: | 0.0036448 |
| inclination: | 99.0776° |
| perigee height: | 801 km |
| apogee height: | 854 km |
| right ascension of ascending node: | 39.2169° |
| argument of perigee: | 204.2331° |
| revolutions per day: | 14.19381894 |
| mean anomaly at epoch: | 183.8363° |
| orbit number at epoch: | 91622 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
