View from above orbital plane
|
View from above satellite
|

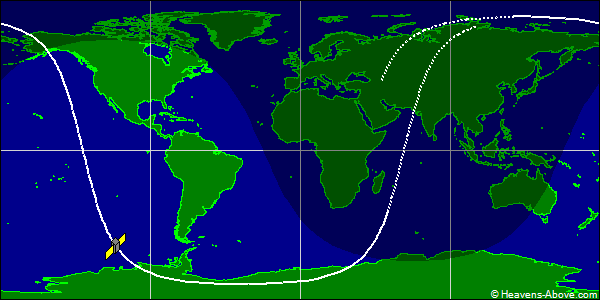

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 30959U 99025BAZ 24355.46652462 .00008036 00000-0 30350-2 0 9995
2 30959 99.6900 255.0281 0055509 147.1907 213.2738 14.30744126552647
| Epoch (UTC): | 20 December 2024 11:11:47 |
| Eccentricity: | 0.0055509 |
| inclination: | 99.6900° |
| perigee height: | 749 km |
| apogee height: | 829 km |
| right ascension of ascending node: | 255.0281° |
| argument of perigee: | 147.1907° |
| revolutions per day: | 14.30744126 |
| mean anomaly at epoch: | 213.2738° |
| orbit number at epoch: | 55264 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
