View from above orbital plane
|
View from above satellite
|

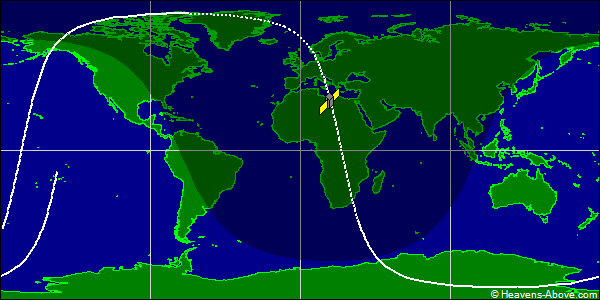

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 40119U 14049B 24357.80466752 .00004005 00000-0 40947-3 0 9998
2 40119 97.8862 96.9539 0016252 102.2303 258.0736 14.91041626560663
| Epoch (UTC): | 22 December 2024 19:18:43 |
| Eccentricity: | 0.0016252 |
| inclination: | 97.8862° |
| perigee height: | 583 km |
| apogee height: | 606 km |
| right ascension of ascending node: | 96.9539° |
| argument of perigee: | 102.2303° |
| revolutions per day: | 14.91041626 |
| mean anomaly at epoch: | 258.0736° |
| orbit number at epoch: | 56066 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
