View from above orbital plane
|
View from above satellite
|

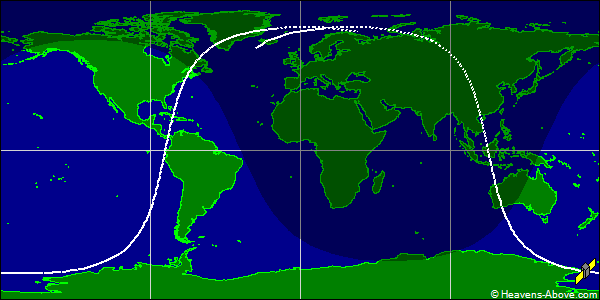

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 5181U 71038B 24358.12806801 -.00000021 00000-0 -22632-5 0 9997
2 5181 74.0001 325.9542 0056157 311.2190 125.0117 13.20746878586529
| Epoch (UTC): | 23 December 2024 03:04:25 |
| Eccentricity: | 0.0056157 |
| inclination: | 74.0001° |
| perigee height: | 1139 km |
| apogee height: | 1224 km |
| right ascension of ascending node: | 325.9542° |
| argument of perigee: | 311.2190° |
| revolutions per day: | 13.20746878 |
| mean anomaly at epoch: | 125.0117° |
| orbit number at epoch: | 58652 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
