View from above orbital plane
|
View from above satellite
|

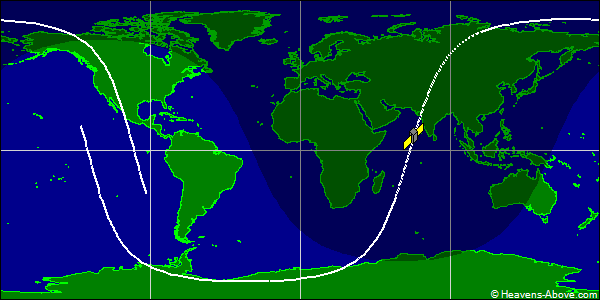

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 10831U 76077CB 24354.68604589 .00064235 00000-0 43087-1 0 9997
2 10831 101.2586 274.0381 0863931 351.0436 7.6064 12.90955419181700
| Epoch (UTC): | 19 December 2024 16:27:54 |
| Eccentricity: | 0.0863931 |
| inclination: | 101.2586° |
| perigee height: | 634 km |
| apogee height: | 1961 km |
| right ascension of ascending node: | 274.0381° |
| argument of perigee: | 351.0436° |
| revolutions per day: | 12.90955419 |
| mean anomaly at epoch: | 7.6064° |
| orbit number at epoch: | 18170 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
