View from above orbital plane
|
View from above satellite
|

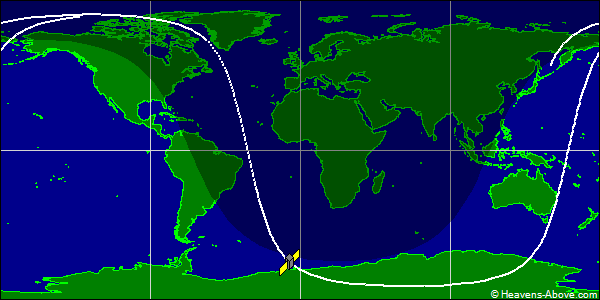

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 30382U 99025ACV 24358.11503729 .00005175 00000-0 20347-2 0 9997
2 30382 98.5353 41.1838 0159443 311.8735 110.1989 14.22950817924867
| Epoch (UTC): | 23 December 2024 02:45:39 |
| Eccentricity: | 0.0159443 |
| inclination: | 98.5353° |
| perigee height: | 700 km |
| apogee height: | 930 km |
| right ascension of ascending node: | 41.1838° |
| argument of perigee: | 311.8735° |
| revolutions per day: | 14.22950817 |
| mean anomaly at epoch: | 110.1989° |
| orbit number at epoch: | 92486 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
