View from above orbital plane
|
View from above satellite
|

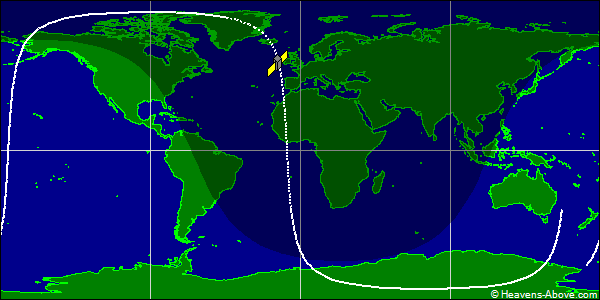

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 27733U 81053MN 24357.14181463 .00005563 00000-0 27274-2 0 9991
2 27733 83.1115 245.5568 0026126 197.7414 162.2857 14.17464754290441
| Epoch (UTC): | 22 December 2024 03:24:12 |
| Eccentricity: | 0.0026126 |
| inclination: | 83.1115° |
| perigee height: | 815 km |
| apogee height: | 853 km |
| right ascension of ascending node: | 245.5568° |
| argument of perigee: | 197.7414° |
| revolutions per day: | 14.17464754 |
| mean anomaly at epoch: | 162.2857° |
| orbit number at epoch: | 29044 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
