View from above orbital plane
|
View from above satellite
|

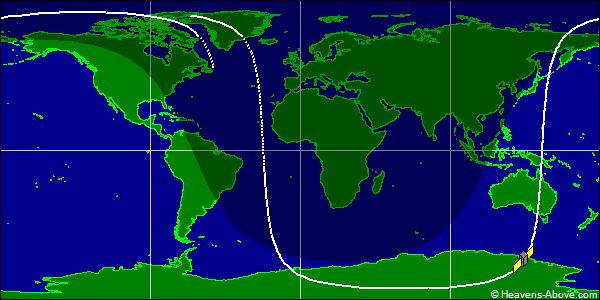

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 12658U 81053N 24358.05990924 .00007975 00000-0 34050-2 0 9991
2 12658 82.9709 218.2091 0037796 289.6436 226.3457 14.24540181213232
| Epoch (UTC): | 23 December 2024 01:26:16 |
| Eccentricity: | 0.0037796 |
| inclination: | 82.9709° |
| perigee height: | 783 km |
| apogee height: | 837 km |
| right ascension of ascending node: | 218.2091° |
| argument of perigee: | 289.6436° |
| revolutions per day: | 14.24540181 |
| mean anomaly at epoch: | 226.3457° |
| orbit number at epoch: | 21323 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
