View from above orbital plane
|
View from above satellite
|

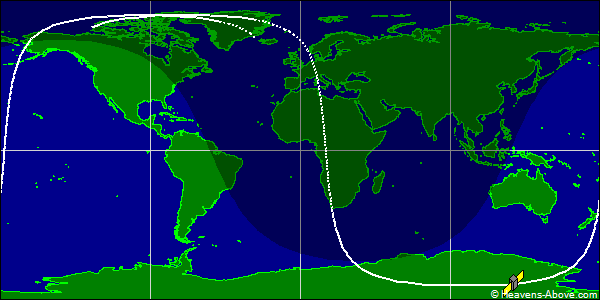

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 43301U 81043Y 24356.66959630 .00004559 00000-0 19426-2 0 9998
2 43301 81.2595 247.9371 0040719 166.9107 193.3139 14.24555649437375
| Epoch (UTC): | 21 December 2024 16:04:13 |
| Eccentricity: | 0.0040719 |
| inclination: | 81.2595° |
| perigee height: | 781 km |
| apogee height: | 839 km |
| right ascension of ascending node: | 247.9371° |
| argument of perigee: | 166.9107° |
| revolutions per day: | 14.24555649 |
| mean anomaly at epoch: | 193.3139° |
| orbit number at epoch: | 43737 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
